66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2

Name: 66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2
Brand: Single Core HV Cable
Price: 1 USD

Brand Name : Single Core HV Cable

Model Number : 2XS(FL)2Y

Certification : CCC,IEC,VDE,TUV,ISO

Place of Origin : Hebei，China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 500KM/Week

Delivery Time : 10work days

Packaging Details : woodern drum

Insulation Material : xlpe

Jacket : PE

Conductor Material : Stranded circular or segmental (Milliken) compacted copper conductor

Nominal Voltage : 110kV

Core : 1 Core

Application : underground

Contact Now

66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2

APPLICATION

For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force.

CONSTRUCTION

66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2

Conductor: Stranded circular or segmental (Milliken) compacted copper conductor
Conductor shield:Semi-conductive shield
Insulation: Cross-Linked Polyethylene(XLPE)
Insulation shield: Semi-conductive shield
Metal shielding layer:Corrugated Aluminum Sheath or Lead Sheath or Aluminum Laminated Tape
Binder tape:Non-woven fabrics
Metal Laminate Foil: Aluminum laminated tape
Outer sheath: PE

STANDARD

IEC 60840 IEC 62067

CHARACTERISTIC

Voltage Rating Uo/U: 64/110kV(123kV)
‌Continuous Operation: ‌+90°C‌ Conductor Temp
‌Emergency Overload‌:‌+105°C‌ Conductor Temp (≤100 hrs/year, ≤500 hrs/lifetime)
Short Circuit:‌‌+250°C‌ Conductor Temp (for calculated duration, typically 1-5s)
‌Installation‌ ‌≥ 0°C‌
‌Ambient Operation ‌≥ -40°C

PARAMETERS

Conductor					Insulation					Nominal Area of Copper Wires	Outer Jacket
Nominal Area	Max.DC resistance at 20℃		Max.AC resistance at 90℃		Nominal Thickness of Insulation Layers						Nominal Thickness		Approx. Overall Diameter		Approx. Overall Weight
					Cond. Screen	XLPE		Ins. Screen
mm²	Ω/km		Ω/km		mm	mm		mm		mm²	mm		mm		kg/m
300 R		0.0601		0.0787	1.2		15		1	95	3.5	67.9		6.47
400 R		0.047		0.0627	1.2		15		1	95	3.5	70.5		7.41
500 R		0.0366		0.0502	1.2		15		1	95	4	74.9		8.79
630 R		0.0283		0.0407	1.2		15		1	95	4	78.4		10.21
800 R		0.0221		0.0338	1.2		15		1	95	4	82.4		12.17
1000 S		0.0176		0.024	1.5		15		1.2	95	4	92.1		14.74
1200 S		0.0151		0.0211	1.5		15		1.2	95	4.5	97.1		17
1400 S		0.0129		0.0185	1.5		15		1.2	95	4.5	99.1		18.99
1600 S		0.0113		0.0168	1.5		15		1.2	95	4.5	103.1		20.72
2000 S		0.009		0.0143	1.5		15		1.2	95	4.5	108.1		24.42
2500 S		0.0072		0.0125	1.5		15		1.2	95	4.5	116.1		29.99

OUR FACTORY

66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2

PROJECT

66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2

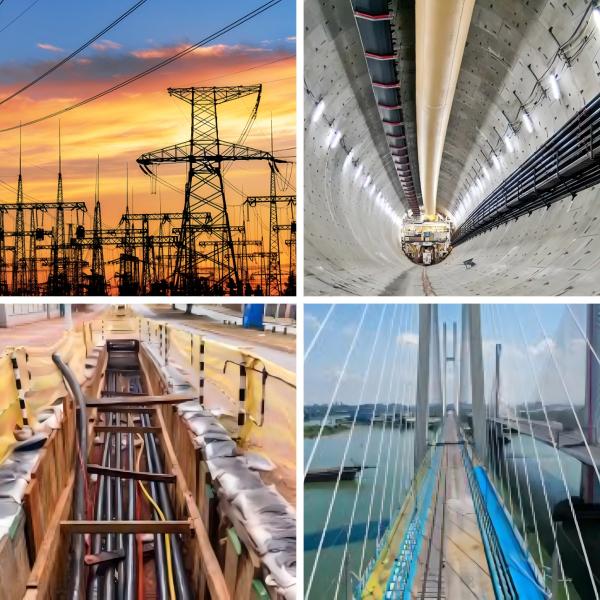

APPLICATION

66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2

CERTIFICATES

66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2

FAQ

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

(5).What is your payment term ?

Our payment term is usually T/T 30% in advanced, the balance before shipping or L/C at sight.
